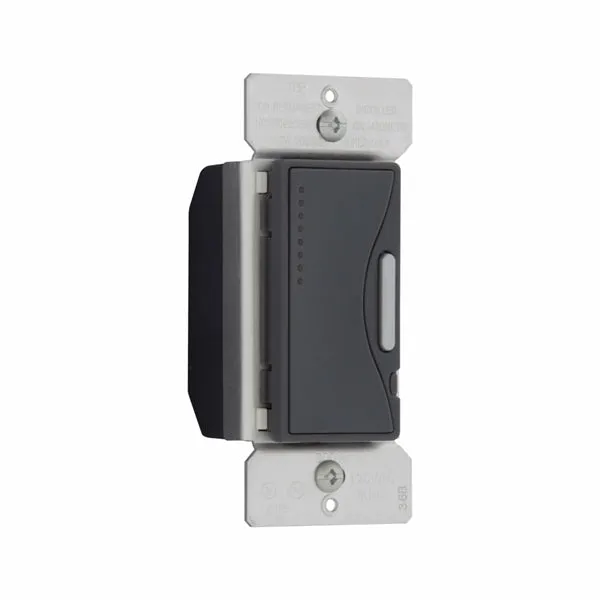

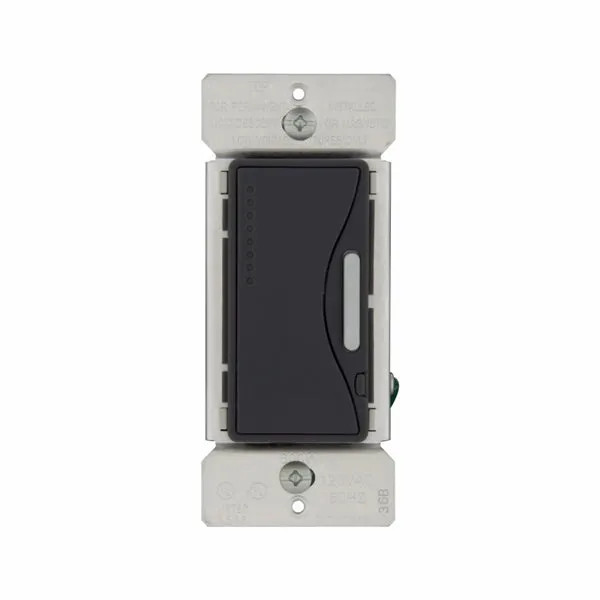

The ultimate in controlling light, compatible with both incandescent and magnetic low-voltage lighting. Features such modes of operation as rapid and delayed fading, LED light-level display for presetting illumination levels and master/remote units for multi-point control. cUL Listed, meets all UL 1472 requirements (file no. E47967), CSA 10016 (file no. 6241-01) as required, NOM certified. Flammability rating V2 per UL 94. Temperature rating of 0 to 35 deg C. 600 W maximum.

Product Details

Manufacturer:

Manufacturer's Part Number: 9534SG

Show me more

Product Features

• Durable top and backbody for long reliable performance

• Adjustable low-end and high-end trimming to prevent lamp flickering

• Illumination level may be adjusted with switch in On or Off position

• Electro-mechanical push pad for On/Off operation with separate dim/bright bar

• Master controls as many as 5 accessory units for multiple location installations

• Preset feature allows user to return to previous light setting when turning lights on

• 10 secs delayed-off feature by pressing and holding push pad for 2 secs when dimmer is on

• Pressing and holding push pad for 2 secs when dimmer is off brings light to full brightness

• Seven step green LED display alongside push pad indicates selected light level and reduces brightness when off

• LED light level display for presetting illumination levels and master or accessory units for multi-location control
